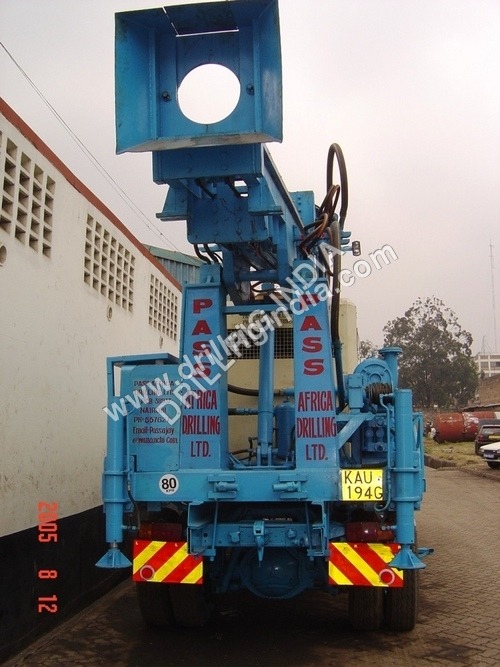

Water Drilling Rig

Water Drilling Rig
Water Drilling Rig
Product Code : WDR - 600
Brand Name : Drillrig India
Product Description

Owing to our expertise in this domain, we are involved in manufacturing, exporting and supplying our clients the finest quality Water Drilling Rig. This rig is intricately manufactured by utilizing the finest grade components and highly-advanced technology under the rigid supervision of our deft professionals. Extensively used for water well drilling, oil drilling and more, this Water Drilling Rig is examined upon various measures of quality to assure their excellent functionality.


  • Long service life

  • Easy to operate

  • Excellent performance

  • Impeccable functionality

Working Specifications:

Capacity        :     6" to 8-1/2; dia bore holes to a depth of 2000 ft.(600 m)

Prime Mover :      Truck mounted rig with power from truck engine. (Other options including separate deck engine for powering hydraulic available )

Work Method :       Combination DTH cum Mud Rotary method using mud pump or air compressor. Also has capability to use simultaneous casing hammer / attachments like ODEX / Tumbex.

Mast :  Heavy duty, welded construction, box type structure Capacity : 66000 lbs (30 tons),Height : 27 fts.(8.1 mtr), Rod handling capacity : 20 ft. (6.1 mtrs).

Hydraulic System : Efficiently designed system complete with hydraulic pumps, motors, filters, valves and neatly laid down hydraulic hoses, oil cooler, etc.,

Pull Up / Pull Down : By means of hydraulic cylinder and wire rope. Max. Pull up force : 48500 lbs(22000 Kg),                                               Max pull up speed : up to 75 ft./ min (23 m / min), Max. pull down force : 33500 lbs (15200                                         kg), Max pull down speed : upto 107 ft. / min (32.5 m/ min).Heavier options available.

Rotary Head  : Heavy duty top drive rotary head, powered by hydraulic motors. Standard Torque : 51500 in - lbs (594 Kg-m), at 0 to 100 rpm other options available on request. Heavier options available on request.

Jacks : Four hydraulic jacks with safety check valve size 125 X 70 X 762 mm.

Hydraulic Oil Cooler : 95 GPM fin types, cooler fan drive through Pulley belt.

Water / Foam Injection Pump : Triplex reciprocating pump of upto 100 lpm and pressure upto 600 psi owered by hydraulic motor.

Break Out Wrench : To open the drill joints hydraulic break out wrench of 350 mm stroke will be provided   complete with wire rope.

Optional Attachments : Welding machine, hydraulic winch, Mud pump, chip hood / Dust curtain, single pipe loader, Floating sub line oiler, Jib boom / winch etc.,

Compressor : 1100 cfm, 350 psi / 1150 cfm, 300 psi / 1100 cfm, 300 psi Other options available on request

Note : As part of our efforts to continuously improve our products, we reserve the right to changes the specifications /design etc. without any notification / obligations.
