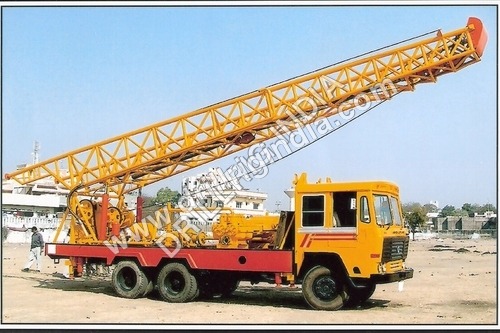

Rotary Drilling Rigs

Rotary Drilling Rigs
Rotary Drilling Rigs
Product Code : RDR-13
Brand Name : DRILLRIG INDIA
Product Description

We feel proud to introduce ourselves as one of the dominant manufacturers, exporters and suppliers of excellent quality Rotary Drilling Rigs that are extensively used for making bores to set tube wells. These rigs are manufactured under the supervision of our experienced professionals utilizing the best grade components that are sourced from the reputed and authentic vendors of the market. The rigs provided by us are extensively used for purification of water and make it fit for drinking. Moreover, clients can purchase these Rotary Drilling Rigs from us at rock bottom prices.

Features:

  • Hassle free performance

  • Operational fluency

  • Low maintenance

  • Impeccable functionality

Working Specifications:

RATED CAPACITY : 8"(203 mm) holes upto 1500 ft.(457 mtrs.) Using 2-7/8"(73 mm) OD Drill                                       Rig.8"(203 mm) - 10"(254 mm) holes upto 1500 ft.(457 mtrs.) Using 3-1/2"                                       (73 mm) OD Drill Rig. Using direct rotary mud circulation method. Also                                           available as a Rotary - cum - DTH Combination rig.

Mast :  Standard

Construction : Welded Tubular                       Height : 42 fts (12.8 mtrs.)                                                                                      Gross Load Capacity : 90,000 lbs (40,800 kgs.)                                                                             Crown Block : 5 Sheaves                                                                                                   Raising & lowering : 02 nos. Hydraulic Cylinders

Drill Head / Rotary Table :Type : Drill Head                                                                                                               Pull Down : 16,000 lbs (7272 kg)                                                                                               Pull Down Stroke:30" (762 mm)                                                                                                           Opening :3"(76.2 mm), 3-1/2" (89 mm), 4-1/2" (114 mm)     Drive : Torque Drive                                                           Clutch : Dog Clutch                                                                   Retraction : Hydraulic 21"(533.4 mm)

Draw Works :   Barrel dia x length  Single line Pull Hoisting Drum : 7"(178 mm) x             15,963 lbs 10-3/8" (263.5)     (7,256 Kg) Sand Reel : 7"(178 mm) x             15,963 lbs 10-3/8" (263.5)     (7,256 Kg) Clutch : Multi disc type mech, type or pneumatic Brake : High leverage mechanical or pneumatic Drive : Multi link roller chain

Mud Pumps  :  Standard Optional  Model :S-200 S-250 Bore x Stroke :6"(152 mm) x 8" 10"(254 mm) x  (203 mm) 7-1/2" (190.5 mm) Max. Strokes / Min :100 85 Discharge & pressure:320 gpm (1210 lpm) 487 gpm (1840 lpm) At Max. Stroke / Min.: 284 psi 256 psi                                                            (19.9 kg/ cm 2) (17.9 kg/ cm 2 ) Clutch : Positive Contact Positive Contact Drive : V Belt / Chain V Belt / Chain Optional liners : 5"(127 mm), 5"(127 mm)   5-1/2"(139.7 mm) 5-1/2"(139.7 mm) 6"(152.4 mm), 6-1/2"(165.1mm), 7"(177.8 mm)

Hydraulic System: Pump Type    : Fixed Displacement vane type.                                                       Discharge & pressure : 21 GPM (80 lpm) @ 100 psi(7 kg/ cm 2 Drive     : Joints

Prime Mover : RIG For Truck Mounted Rig For Trailer Mounted Rig                                         Model Truck Engine   ALGP412                                                                                       Other options available

Transmission : 5 Forward & 1 Reverse        Kelly   3-3/8"(85.7 mm) dia. x 28 ft. round three fluted kelly    Optional -4-1/4" round / square kelly also available

Leveling Jacks : 04 nos. Mechanical and 04 nos. Hydraulica Jacks          Control    Centralised

Lighting : From Truck Battery / Dynamo (optional from seprate 2.5 KVA Generator) Dimension : TRUCKS TRAILERS  length R Breadth : 42 ft. x 8 ft.                42 ft. x 8 ft. Height (Mast Down) 11'6" (3.5 m) 11'6" (3.5 m)    Options :Truck - 6x4, 4x2, OR 4x4. Trailer  full or semi, separate deck engine,                                                Double brakes on draw works, Hydraulic break out, water injection                                                  /Lubrication system, 48 ft. long mast.
